Finality AT Gear Drive

Regular price €677.60 incl. 21% VAT
€560.00 excl. VAT

A new gear drive system from the 3DServisas Finality product series. A revolutionary new design involving all drivetrain components to provide the best possible driving experience for riders.

After designing and making gear drive systems for longboards and mountainboards for over three years, we are thrilled with the results, and it's our pleasure now to introduce our newest gear drive system.

Finality AT Gear Drive system

A multi-component gear drive system consisting of three key components:

  • Finality Wheel Hub (FWB)
  • Finality Gear Drive (FGD)
  • Finality Wheel Rim (FWR)

Finality Wheel Hub (FWB) System

After designing and riding multiple styles of boards and thousands and thousands of kilometers, we were never happy with the wheel mounting and driving system. It always was a major vulnerable part of the design. The exposed bearings, lack of precision, complicated assembly process, and weight issues led us to redesign this mounting and driving system from scratch. Using our motorsports experience and consulting several experts in the field, we would like to introduce a new way to mount and drive wheels on electric boards Finality Wheel Hub System (FWB)

After a full redesign of the system by taking inspiration from the car wheel hub, we designed a new wheel hub system with an enclosed dual tapered bearing and a five-bolt mounting pattern. It allows us to mount the wheel rim to the trucks and drivetrain without any issues and removes bearing's from the wheel rim.

Finality Wheel Rim (FWR)

After redesigning the wheel hub system, we needed to make new wheel rims for the wheels. After removing bearings and just having a 5-bolt mounting mechanism using M6 hardened bolts, which each can withstand more than 100kg, we can provide the most rigid, light, and accurate wheel-spinning experience.

The new wheel rim consists of 2 parts and weighs around 200g and 590g, with the tire.

There are two options for the wheel rim design:

Model Tire Sizes Diameter Width Weight
6.5" - 8" 6.5" (125mm) – 8" (203mm) 106mm 46mm 200g
8" - 10" 8" (203mm) – 10" (245mm) 116mm 56mm 300g

Finality AT Gear Drive (FGD) System

After releasing our last most successful gear drive design, we bring the updated gear drive design to this system. A CNC machined aluminum enclosure with a special plastic wheel gear (which is more rigid than POM and equivalent to aluminum rigidness) and steel motor gear this system is only available in helical gear design for best power transfer and noise levels. With a fully enclosed design and multiple bearing design for the best gear work efficiency.

The gear drive comes in few diameter options tied with a specific gear ratio, which allows this system to be mounted on several truck designs:

Truck Design Gear Drive Diameter Gear Ratio Wheel Gear Teeth Count Motor Gear Teeth Count Motor Sizes Motor Axis Diameter Wheel Rim Models Width (Wheel to Wheel)
Finality Channel Trucks / FatBoy FB320 94mm 1:2.6 36 14 63XX 8mm (10mm on order) 6.5" – 8" 470mm
8" – 10" 490mm
1:3 12 6.5" – 8" 470mm
8" – 10" 490mm
103mm 1:3.3 40 12 63XX, 6542 6.5" – 8" 470mm
8" – 10" 490mm
1:4 10 6.5" – 8" 470mm
8" – 10" 490mm
127mm 1:4 10 63XX, 6542, 80XX (on order) 10mm 6.5" – 8" 470mm
8" – 10" 490mm
1:5 8 6.5" – 8" 470mm
8" – 10" 490mm
Lacroix Hypertruck™ 103mm 1:3.3 12 63XX 8mm (10mm on order) 6.5" – 8" 510mm
8" – 10" 530mm
1:4 10 6.5" – 8" 510mm
8" – 10" 530mm
127mm 1:4 10 63XX, 6542 10mm 6.5" – 8" 510mm
8" – 10" 530mm
1:5 8 6.5" – 8" 510mm
8" – 10" 530mm



Available Configurations

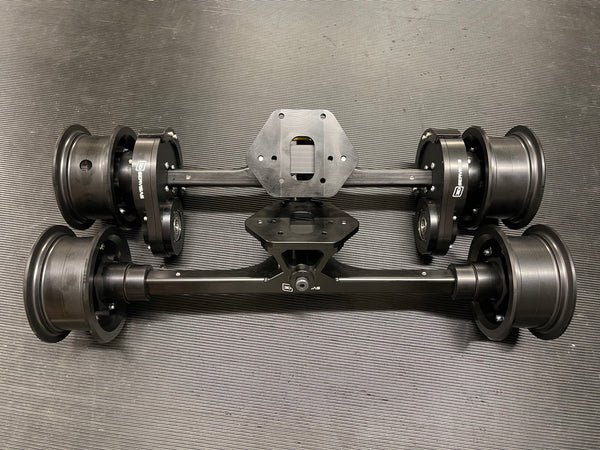

A typical configuration is 4 x Finality Wheel Rim, 2 x Finality Wheel Hub System, 2 x Finality AT Gear Drive System with FWH. A 4WD configuration is available on custom order.

Finality Channel Trucks with Finality Wheel Rims

Pre-Assembled Kit Contains:

  • 2 x Finality Channel Trucks
  • 4 x Finality Wheel Rims
  • 2 x Finality AT Gear Drive System with Finality Wheel Hubs
  • 2 x Finality Wheel Hubs for front wheels
  • Mounting Hardware
  • Gear lubrication grease

FatBoy FB320 v2 Hanger (Baseplate and bushings not included) with Finality Wheel Rims

Pre-Assembled Kit Contains:

  • 2 x FatBoy FB320 Hanger V2
  • 4 x Finality Wheel Rims
  • 2 x Finality AT Gear Drive System with Finality Wheel Hubs
  • 2 x Finality Wheel Hubs for front wheels
  • Mounting Hardware
  • Gear lubrication grease

Lacroix Hypertruck™ Trucks (Not Included) with Finality Wheel Rims

Kit Contains:

  • 4 x Finality Wheel Rims
  • 2 x Finality AT Gear Drive System with Finality Wheel Hubs
  • 2 x Finality Wheel Hubs for front wheels
  • Mounting Hardware
  • Gear lubrication grease

A 3D .STP file for 3D printed bumpers can be found here

Assembly Instructions here

Custom anodising color here

The kit is made on order and will be shipped within a 3-4 week after payment confirmation
